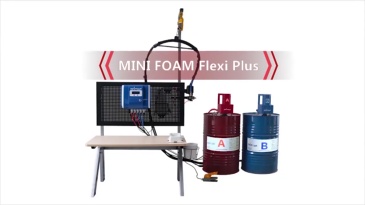

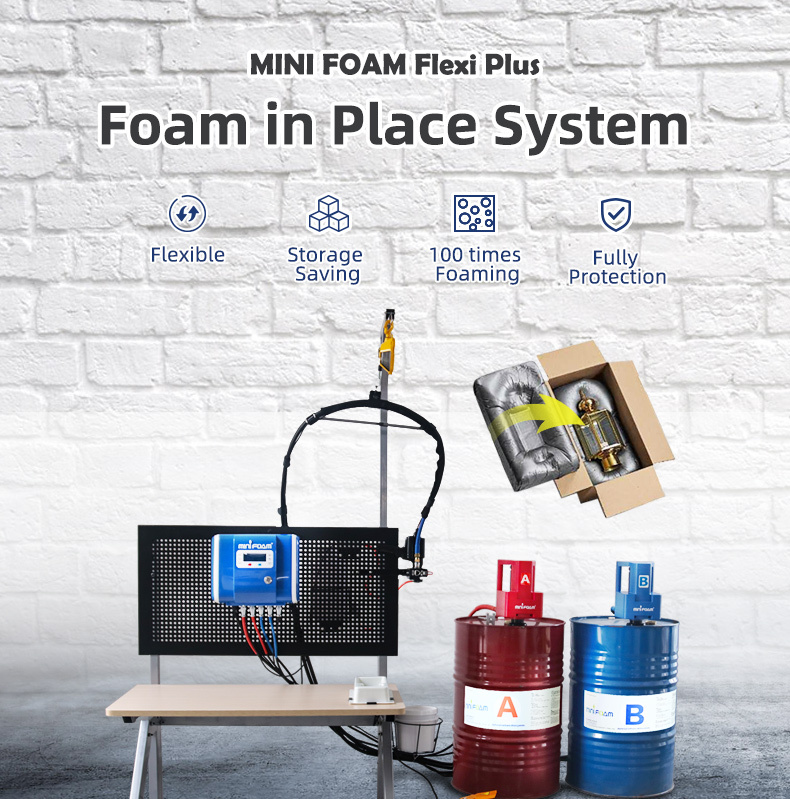

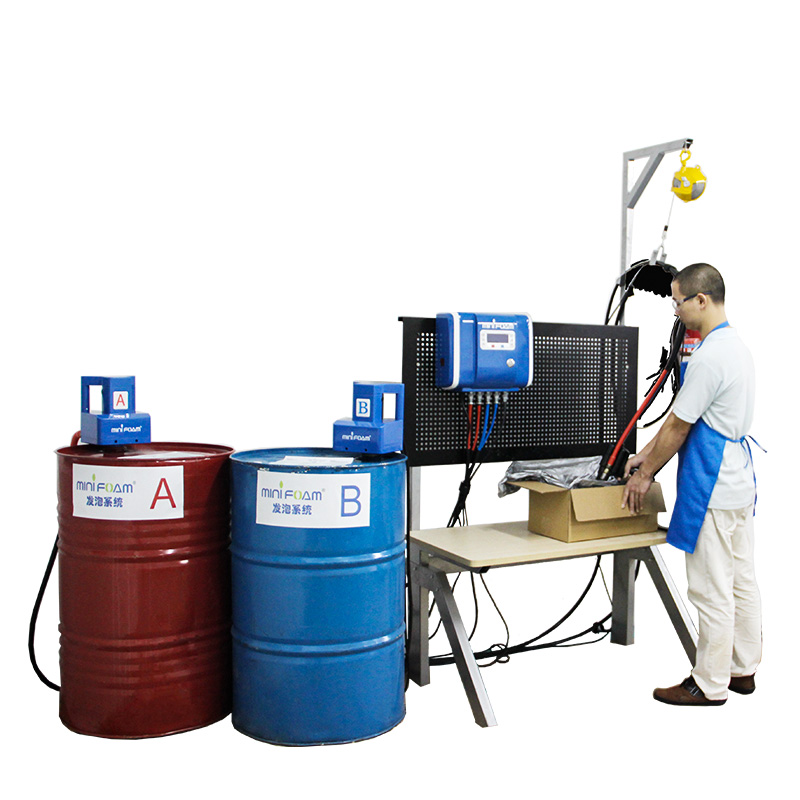

The Mini Foam FlexiAuto is a PU foam injection machine for filling gaps and securing products during shipping. It uses a foot pedal to dispense expanding foam around the product during packing.
The foam expands up to 100 times its original volume after injection, giving you more cushioning from less raw material.
Temperature and liquid flow can be adjusted to control the amount of foam used for different products and package sizes.

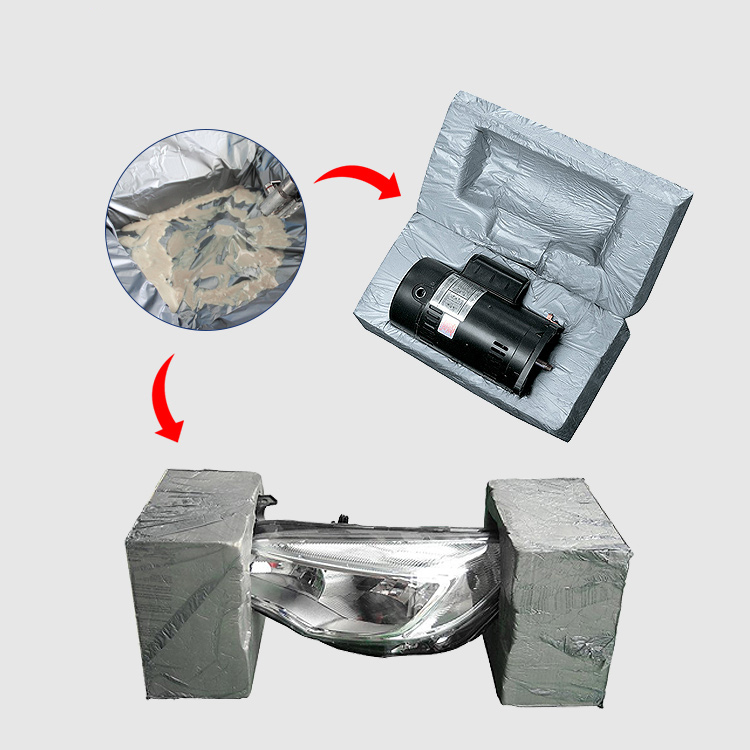

The expanding foam fills the space around the product and forms to its shape, helping keep it in place during handling and transport.
Foam is produced when you need it, so you do not need to keep large amounts of pre-made cushioning material in the warehouse.
| Power / Voltage | 3500W (Instantaneous) / 220V, 50Hz |
| Machine Weight | 90kg (Machine only) |
| Operation | Foot pedal |
| Foam Liquid (A / B) | Foam A: 250kg or 60kg/barrel Foam B: 213kg or 50kg/barrel |
| Foam Film Rolls | 475mm × 20μm × 660m — 12.31kg 760mm × 20μm × 660m — 22.70kg 910mm × 20μm × 660m — 23.59kg |
A PU foam injection machine is used to fill gaps and cushion products during packaging. The expanding foam forms around the product to help keep it secure during handling and shipping.
The PU foam can expand up to 100 times its original volume after injection, providing more cushioning material from a smaller amount of raw material.
The expanding foam fills the space around the product and forms to its shape, helping reduce movement inside the package during handling and transport.
Yes. The machine allows the temperature and liquid flow to be adjusted, so the foam output can be controlled for different products and package sizes.
The Mini Foam FlexiAuto uses Foam A and Foam B together with Foam Film for the foaming packaging process. Foam A is available in 250kg or 60kg barrels, while Foam B is available in 213kg or 50kg barrels.
